Pub Annos

Applies to ECAs

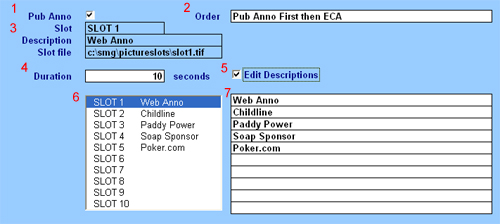

1. Pub Anno Checkbox
When checked it enables a Pub Anno to be transmitted from the left hand side of frame.

The pub anno is supplied as a TIFF or TARGA with an alpha channel covering the left half of frame. The graphic should be 720x576, 16x9 full height anamorphic.

2. Move Order
Applies to ECAs with Pub Annos.

The choices are:

·         ECA only
The credits move from full screen to reveal the ECA on the right of frame. At the end of the ECA duration the credits return to full frame.

·         Pub Anno only
      The credits move from full screen to reveal the pub anno on the left of the screen. At the end of the pub anno duration the credits return to full frame.

·         ECA then Pub Anno
The credits move from full screen to reveal the ECA on the right of frame. After the ECA duration the credits move to reveal the pub anno on the left of the screen. At the end of the pub anno duration the credits return to full frame.

·         Pub Anno then ECA
The credits move from full screen to reveal the pub anno on the left of the screen. At the end of the pub anno duration the credits move to reveal the ECA on the right of frame. After the ECA duration the credits return to full frame.

3. Slot Choice
Applies to ECAs with Pub Annos.

There are ten slots available for pub annos. Select the one you want to transmit from the list (6)
Once selected the following is shown on the screen.

·         Slot number

·         Description
The is a simple description to identify the pub anno. You can change the descriptions by checking the box 'Edit Descriptions' (5) and then typing a new description in the relevant slot (7). Once finished uncheck the 'Edit Descriptions' box.

·         Filename
This is the filename on the Clarity where the graphic should be saved.

Details of how to construct the graphic for Pub Annos can be found here: Specification of Pub Annos

4. Pub Anno duration
Applies to ECAs with Pub Annos
The number of seconds for the event.  Note that for ECAs with Pub Annos the total duration is the duration of the ECA plus the duration of the Pub Anno. The total duration is shown in the total duration box.
